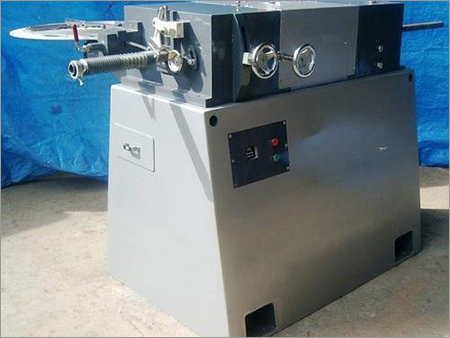

Tube Finning Machine

Name: Tube Finning Machine
Brand: ADMECH EQUIPMENT (INDIA) PVT. LTD.
Price: 450000.00 INR
Availability: InStock

450000.00 INR/Piece

Get a Price/Quote

Product Details:

Lubricating System Automatic
Model No TFM-220
Voltage 380V / 415V
Noise Level <80 dB
Control System PLC based
Motor Power 5.5 kW
Frequency 50-60 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Tube Finning Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 450000.00 INR/Piece

Safety Features Emergency Stop, Interlock Guards
Fin Pitch Range 2-20 mm
Fin Material Compatibility Copper, Aluminum, Stainless Steel
Max Fin Height 15 mm
Operator Panel Digital Touchscreen
Installation Requirement Stable Surface, Standard Power Supply
Tube Length Capacity up to 6000 mm
Tube Diameter Range 15-100 mm

Tube Finning Machine Product Specifications

Voltage 380V / 415V
Dimension (L*W*H) 2200 x 1100 x 1400 mm
Noise Level <80 dB
Control System PLC based
Lubricating System Automatic
Color Blue / Grey
Model No TFM-220
Operating Type Manual / Semi-Automatic
Usage & Applications Industrial
Drive Gear Driven
Motor Power 5.5 kW
Frequency 50-60 Hz
Production Capacity 500-600 tubes per shift
Features High Efficiency, User-Friendly Operation, Robust Construction
Machine Type Industrial Processing Equipment
Power Source Electric
Connectivity Options Standard
Accuracy High Precision
Frame Type Welded Steel Frame
Surface Treatment Painted
Technology Semi-Automatic
Weight (kg) 1500 kg
Cooling System Water Cooled
Power 5.5 kW
Pressure 0.6-0.8 MPa
Power Rating 5.5 kW
Product Type Other
Operating Temperature 0-45C

Safety Features Emergency Stop, Interlock Guards
Fin Pitch Range 2-20 mm
Fin Material Compatibility Copper, Aluminum, Stainless Steel
Max Fin Height 15 mm
Operator Panel Digital Touchscreen
Installation Requirement Stable Surface, Standard Power Supply
Tube Length Capacity up to 6000 mm
Tube Diameter Range 15-100 mm

Tube Finning Machine Trade Information

Payment Terms Cash on Delivery (COD), Cheque, Cash in Advance (CID), Cash Advance (CA)
Supply Ability 100 Piece Per Month
Delivery Time 2-3 Months
Main Domestic Market All India

Product Description

We have been successfully satisfying the diverse needs of our esteemed clients by providing them with a flawless gamut of Tube Finning Machine that is capable of manufacturing various kinds of finned tubes like wrap around (L and LL fins), embedded fins, knurled, soldered fins. The offered Tube Finning Machine completely works on the principle of Roto Advancing mechanism of tube and fins that are crimped and highly tension wound around the periphery of tube. In order to deliver flawless range at customers end, the offered product is thoroughly tested on several parameters.

Technical Specifications

Fin Height	5 mm to 20 mm
Brand	Admech
Material	SS, MS
Usage/Application	Industrial
Tube Outer Diameter	Tubes 8 mm OD to 100 mm OD
Thickness	Upto 1 mm

Product Details :

Production Capacity

As per customer requirement

As a reliable organization, we are offering perfect tube finning machines. They offer versatility, speed, precision and reliability. The machines are engineered for high performance and longer service life.

Precision Compatibility for Enhanced Productivity

The Tube Finning Machine supports a variety of fin materials including copper, aluminum, and stainless steel, catering to diverse industrial requirements. It is engineered to handle tubes with diameters ranging from 15 to 100 mm, ensuring flexibility for different manufacturing needs. Its broad fin pitch and height capacities guarantee optimal adaptability for bespoke applications.

User-Friendly Control and Advanced Safety Features

Equipped with a modern digital touchscreen operator panel, the machine simplifies setup and monitoring, reducing training time for operators. Safety is a priority, with integrated emergency stop and interlock guards ensuring safe operation and compliance with industrial standards. Suitable for installation on stable surfaces and requiring a standard power supply, the machine is straightforward to install and maintain.

Versatile Applications Across Industries

This machine is widely used in industrial sectors for improving heat exchange systems and surface treatment processes. Its robust construction, painted surface, and expansive tube length capacity enable high-volume production for distributors and manufacturers. As an exporter and supplier based in India, it addresses various market needs for efficiency and reliability.

FAQs of Tube Finning Machine:

Q: How does the Tube Finning Machine enhance heat transfer efficiency?

A: By attaching fins precisely to tubes, the Tube Finning Machine increases the surface area available for heat exchange, resulting in improved thermal performance in industrial systems.

Q: What materials are compatible with this machine for finning purposes?

A: The machine is compatible with copper, aluminum, and stainless steel fins, providing versatility for diverse industrial applications and specific heat transfer requirements.

Q: When should the Tube Finning Machine be installed, and what are the requirements?

A: Installation should be performed on a stable surface with access to a standard power supply to ensure safety and optimal machine performance.

Q: Where can this Tube Finning Machine be utilized?

A: It is suitable for use in industrial environments, particularly in manufacturing plants focusing on heat exchanger systems and surface treatment processes. Distributors, exporters, manufacturers, and suppliers in India commonly deploy this machine.

Q: What is the operational process of the Tube Finning Machine?

A: Operators set up the machine using the digital touchscreen panel, configure the tube and fin parameters, and initiate the automated fin attachment process, which is safeguarded by emergency stop and interlock guards.

Q: How does the operator panel benefit users during operation?

A: The digital touchscreen panel streamlines machine control, allowing easy adjustments, monitoring, and troubleshooting, thereby improving user experience and minimizing human error.

Q: What are the main benefits of using this machine for production?

A: The Tube Finning Machine offers high precision, material compatibility, robust safety features, and a large capacity for tube length, making it highly reliable and efficient for industrial-scale finning needs.
