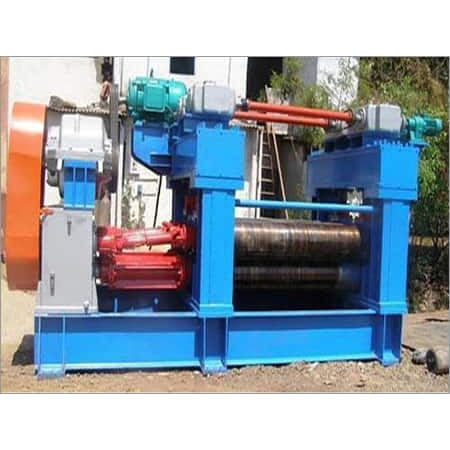

Hydraulic Sheet Leveller
Hydraulic Sheet Levelleris an electrically driven machine which consist of a series of roller that are interconnected with the help of a geared mechanism to provide rotary motion. It is equipped with a heavy duty motor which runs on alternatingvoltage of 220 to 400 volts. It is widely used to straighten the metallic sheets a well as to improve their surface quality by levelling the uneven curves. It has a simple control interface which makes it very easier to operate.
Technical Specifications
Width | Upto 2500 mm |
Capacity | 5 MT to 35 MT |
Brand | Admech |
Automation Grade | Automatic |
Body Material | Mild Steel |
Frequency | 50/60 Hz |
Phase | Three |
Thickness | Upto 25 mm |
Usage/Application | CR & HR Coil |
Voltage | 415 V |
