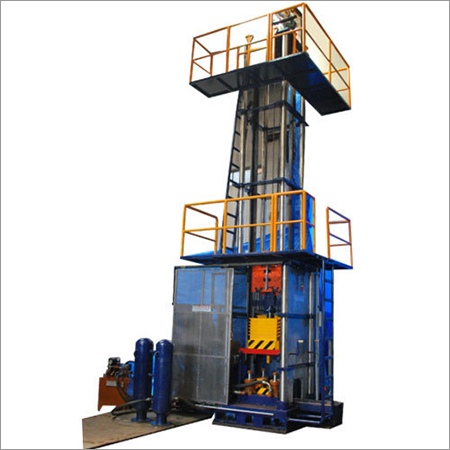

Drop Weight Tear Testing Machine

Name: Drop Weight Tear Testing Machine
Brand: ADMECH EQUIPMENT (INDIA) PVT. LTD.
Price: 1500000.0 INR
Availability: InStock

1500000.0 INR/Piece

Get a Price/Quote

Product Details:

Max Height 2500 mm
Gas Pressure 6 Bar (for optional pneumatic functions) Bar
Response Time < 1 ms Minutes
Port Size Customizable as per requirement
Automation Grade Semi-automatic
Test Range 50J to 400J (Joule)
Mounting Type Floor mounted
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Drop Weight Tear Testing Machine Price And Quantity

Price 1500000.0 INR/Piece
Minimum Order Quantity 1 Piece

Drop Weight Variable up to 50 kg
Specimen Support Quick-locking vice
Finish Powder-coated, corrosion resistant body
Safety Features Protective interlocks, emergency stop
Data Output Direct PC connectivity and export
Frame Construction Rigid welded steel frame
Striker Types Interchangeable as per ASTM/ISO standards

Drop Weight Tear Testing Machine Product Specifications

Test Speed Standard impact velocity (typically 5 m/s to 8 m/s)
Interface Type USB/RS232 (optional)
Features Safety enclosure, user-friendly interface, automatic report generation
Equipment Type Drop Weight Tear Testing Machine
Humidity Up to 85% RH
Number of Specimens Single specimen per test
Application Impact and tear strength testing of metals & materials
Temperature 0C to 50C operating range Celsius (oC)
Specimen Size 75 mm 30 mm thickness (up to 12.5 mm) Millimeter (mm)
Test Width Up to 100 mm Millimeter (mm)
Control Mode PLC based control
Power Supply 220V, 50 Hz, single phase
Display Type Digital panel
Gas Pressure 6 Bar (for optional pneumatic functions) Bar
Response Time < 1 ms Minutes
Machine Weight Approx. 1000 kg Kilograms (kg)
Test Stroke Max. 400 mm
Max Height 2500 mm
Accuracy 1% of reading %
Operating Voltage 220V AC Volt (V)
Hardness Not applicable to machine body
Usage tear testing
Resolution 0.1 J
Frequency 50 Hz Hertz (HZ)
Port Size Customizable as per requirement
Automation Grade Semi-automatic
Test Range 50J to 400J (Joule)
Mounting Type Floor mounted

Drop Weight Variable up to 50 kg
Specimen Support Quick-locking vice
Finish Powder-coated, corrosion resistant body
Safety Features Protective interlocks, emergency stop
Data Output Direct PC connectivity and export
Frame Construction Rigid welded steel frame
Striker Types Interchangeable as per ASTM/ISO standards

Drop Weight Tear Testing Machine Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 4 Week
Main Domestic Market All India

Product Description

The Drop Weight Tear Testing Machine is used for testing of ferrite steels. They helps in observing specimen fracture surface after impact. The provided machines is widely used for research and development to determine material suitability. They are known for their features such as robust design, durability and lower maintenance. The Drop Weight Tear Testing Machine is highly acclaimed by our customers. Further, they are tested by our quality assurance team to ensure they are free from defect. They are available in various size and specifications and can be availed from us at the market leading price point.

Committed to quality, we have been manufacturing advanced Drop Weight Tear Testing Machines. They show high precision, performance and longer service life.

Technical Specifications

Color	Any
Product Type	Impact Testing Machine
Frequency	50/60 Hz
Automation Grade	Manual
Phase	Three
Voltage	415 V
Brand	Admech
Material	Mild Steel

Versatile and Precise Impact Testing

Designed to handle a spectrum of tear and impact testing, this machine accommodates test widths up to 100 mm and specimens up to 12.5 mm thick. The variable drop weight and interchangeable striker system mean you can easily adapt testing parameters to meet ASTM or ISO standards, ensuring consistent, reliable results for a range of metals and material types.

Advanced Control and Data Management

Integrating a PLC-based control system, the machine offers intuitive semi-automatic operation. Direct PC connectivity with options for USB or RS232 interfaces enables straightforward data export and automatic report generation. The digital panel delivers real-time feedback with a resolution of 0.1 J and response time under 1 ms, streamlining the testing process for research or industrial quality assurance teams.

Built for Safety and Longevity

Safety features like protective interlocks, a locking specimen vice, and an emergency stop protect users throughout testing. The rigid welded steel frame is powder-coated for corrosion resistance. With a compact but sturdy build and customizable port sizes, the machine is suited for floor-mounting in both laboratory and industrial environments, delivering enduring performance under varied conditions.

FAQs of Drop Weight Tear Testing Machine:

Q: How does the Drop Weight Tear Testing Machine ensure accurate and reproducible results?

A: The machine utilizes a PLC-based control system to regulate testing parameters closely and features an interchangeable striker mechanism for compliance with ASTM/ISO standards. Its digital display panel gives high-resolution readings (0.1 J resolution, 1% accuracy), enabling consistent, precise measurement with every test.

Q: What types of materials and specimens can be tested with this machine?

A: This equipment is designed for impact and tear strength testing of metals and other materials. It can test specimen sizes of 75 mm 30 mm with thicknesses up to 12.5 mm and test widths up to 100 mm, accommodating a range of sample dimensions for industrial and research applications.

Q: Where can the Drop Weight Tear Testing Machine be installed for operation?

A: The machine is built for floor mounting and is suitable for laboratory, quality control, or industrial environments. Its powder-coated body and sturdy frame ensure durability even in demanding settings across India and abroad.

Q: What is the process for exporting test data from the machine?

A: You can directly export data to a computer using the built-in PC connectivity. The machine supports USB or optional RS232 interfaces and includes automatic report generation for seamless data management and analysis.

Q: When should safety features be utilized during tear testing?

A: Protective interlocks, the emergency stop button, and the safety enclosure should always be engaged before starting a test. These features safeguard operators by preventing unintended access or operation during impact and tear tests.

Q: How does the machine benefit materials research and industrial testing?

A: By providing precise, standardized tear and impact testing within a wide joule range (50J to 400J), the machine enables manufacturers and researchers to reliably assess material toughness. Features like quick specimen mounting, automation, and robust safety mechanisms enhance testing efficiency and workplace safety.
